Ushering in Industry 4.0 at HEGLA-HANIC all in small, fast-working steps

With the advent of smart factories, the future of glass processing is one that’s fully-digitalised, networked and highly-automated. Here the team at HEGLA-HANIC identifies a key priority in the reduction of costs whilst improving or automating processes - even if the big solution needn’t come all at once.

As Managing Director of HEGLA-HANIC Jan Schäpers said recently, when considering today’s much-needed advances in software and automation for the glass industry it often pays to take a closer look at individual steps.

Where is paper being used?
If prioritisation or analysis is difficult at the beginning, Schäpers recommends a topic for initial reflection that regularly proves its mettle: “Where are we still working with paper? Which processes are being controlled without software or manually triggered?”

He goes on to explain why: “The work steps where information is transferred manually or by routing slip are more prone to error and typically slower than system-controlled sequences.”

Networking and automating offcut optimisation with production planning software, handling and machines also holds the promise of additional cost savings. For example, the glass can be held ready in the ReMaster for access by the cutting system without handling time – thereby reducing waste.

In the ideal case, the data required can be integrated into the MES and production planning software via an interface – or even better, be centrally-inputted there for all needs. Making the data automatically available from a central location excludes errors and enables companies to leverage their entire potential. If the technical effort required to compile the data is too great then transferring information via scan is a viable alternative. When a machine-readable sticker or laser marking is used for scanning then the processing step can be documented for product traceability or evaluated for production planning at the same time.

Depending on the extent to which the company drives its data integration, the ID or marking code can be used to trigger processing steps without any risk of mix-ups. The data for processing a previously set-up pane are directly available to, say, a double edger. And information as to whether RF-transparent or bird protection glass is to be produced can be transferred to a laser processing system as well. If the end of a process is also acknowledged via scan then this creates valuable production data – making it available for capacity and production planning.

Reduce offcut costs with dynamic continuous optimisation
Offcut optimization is certainly one of the perennial concerns of glass processing companies. But the increasing cost of glass today has made the topic even more relevant. Depending on the product portfolio and level of automation in handling, the use of dynamic continuous optimisation holds the promise of additional benefits.

A cockpit displayed on monitors at central points in production can improve communication and transparently involve the employees, who understand sequences better and can see the interdependence of processes. Data selection can be configured freely and across departments.

“With this approach, optimisation is applied to multiple batches and is continuously adjusted: for example, when panes are remade or new orders are created in the ERP,” explains Jan Schäpers.

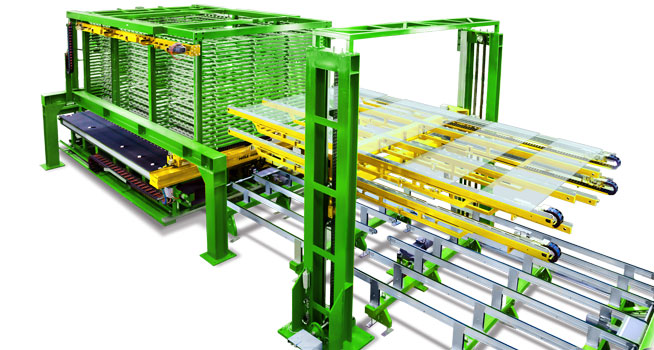

This increases the utilisation rate and reduces resource consumption. Additional potential can be created by an automatic remnant system that is linked to the optimisation software and holds usable panes ready for access by the cutting system.

Transparent information
The large quantity of data made available as a consequence of digitalising and automating systems and process steps offers a starting point for getting employees even more involved and on board with regard to their daily tasks.

First, collecting this information improves their knowledge of production. Second, it has often been shown that implementing a cockpit in a company improves communication and understanding among employees. Depending on the data selection and storage mode, monitors in the production area display the current stock levels and indicate whether or not cutting or insulated glass production is still on schedule and which batches should be prioritised on a given day.

If desired, an intuitive traffic light system with a target/actual comparison can provide information as to whether or not production is still in sync or action is required.

The shop floor as the sum of the parts
Alongside the many small and medium options, the comprehensive networking and digitalisation of the ERP to production planning software and the machines ultimately offer further starting points.

Comprehensive networking and digitalisation promises additional starting points such as an optimised order process that takes place either directly in the ERP or is networked with the customer and then imported with a plausibility check and without errors. If required, the back office can subsequently approve the orders.

Here as well, Dr. Schäpers recommends first looking at areas that are not directly integrated into a process or are manually controlled via paper. Depending on the portfolio, optimisation of the ordering process in the ERP can be worth considering in order to automatically import the customer order and run a plausibility check or request missing information. And depending on the configuration, the stock level is immediately checked and a control code for the various systems is generated.

For some companies, triggering shipping document creation via automatic or manual scan at the system is ideal. The more the various systems and departments communicate with each other directly or are controlled by software, the less prone the overall system is to errors and delays.

“In recent years, the dynamics within the economy have shown that alongside the major goal of Industry 4.0, the smaller intermediate steps are also valuable when the aim is to improve processes, minimise errors or flexibly adjust to changing requirements,” says Jan Schäpers.
