LIJIANG Glass’ automatic insulated louvre glass curtain machine

Let’s introduce LIJIANG GlassAutomatic insulated louvre glass curtain machine.

Product Overview

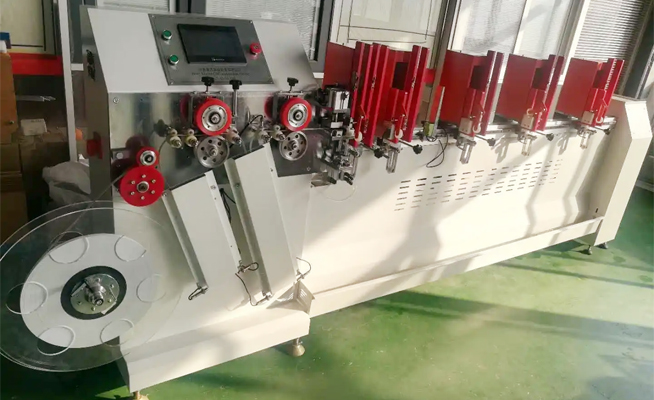

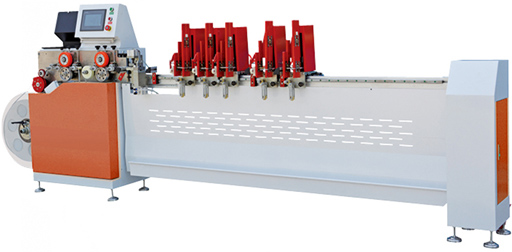

LIJIANG Glass’ Automatic insulated louvre glass curtain machine is a new generation of products designed specifically for processing aluminium louvres. It is controlled by CNC technology. The length, hole spacing, and number of punching holes of the aluminium sheet are input through the touch screen. It automatically completes functions such as arc pressing, punching, cutting, counting, and ladder threading, with a high degree of automation. There are 12.5, 15, 16, 25 and other specifications to choose from. It is the main equipment for producing louvres, insulated louvre glass and louvre partitions.

Features and Advantages
LIJIANG Glass Automatic insulated louvre glass curtain machine:

  1. It can automatically feed, press arcs, punch holes, cut off and discharge materials according to the parameters such as the length, number of holes and ihole spacing of the curtain sheet, and has alarm and shut-down protection functions.
  2. It has the function of automatic ladder rope threading, saving labour.
  3. It is PLC controlled, it has touch screen setting, easy adjustment and high precision.

Technical Parameters
Power: 1.5kw 220v 50hz
Applicable curtain width: 12.5 mm, 15mm, 16mm, 25mm
Overall size: 3800mm*500mm*1400mm
Weight: 300kg
