Agr International: automated Volume measurement system for the plant floor

A more efficient way to manage volume and fill height requirements during glass bottle production

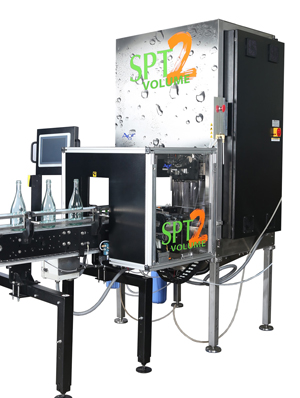

Agr International, Inc. announced the latest addition to its family of products for the glass container industry, the SPT2-Volume. This automated, self-contained testing station is designed to provide hands-free, automated volume measurement of glass containers on the plant floor or in the laboratory, offering a cost-effective alternative to the tedious hand measurement of bottles.

According to Agr, this system was developed to meet the needs of glass container producers and brand owners that need fast and precise volume measurement but do not require pressure testing. This product is particularly applicable to the producers of non-pressurized ware, including spirit, olive oil and specialty beverage and food containers where volume measurement is critical.

The SPT2-Volume is an extension of the industry leading Agr SPT2 product line. Built upon the same testing platform, this system shares many of the popular features, including a rugged stainless steel framework, no job change bottle handling system and a Linux operating system.

What is unique about the SPT2-Volume is its ability to perform fill height and volume measurement with laboratory accuracy, the repeatability that is achieved with automation and a fast throughput necessary for effective process management.

System handling and operational components have been configured with this in mind.  Plus, the system can be configured to operate autonomously, where it can provide round-the-clock volume measurement without additional labour requirements.

Volume measurement with precision
The SPT2-Volume system utilizes positive-displacement as it core technology. A known volume of fluid is transferred from a temperature compensated, calibrated cylinder into the test container. At the same time, the fill level is dynamically monitored as the container is filled to overflow.

The positive-displacement method offers a number of advantages over traditional laboratory methods. Most significant is the accuracy and speed. This filling technique, in tandem with a high-precision fill-height sensor, makes it possible to deliver defined volume and fill measurements at any point within the process, to an accuracy of + 0.5 ml. Measurements can be performed at a rate of up to 120 bottles per hour (350 ml bottle).

Other advantages include little or no effect on measurement precision due to water quality, container shape or rate of fill, regardless of the size and volume of the container. Furthermore, the volume measurement system on the SPT2-Volume is self-contained, requires no delicate scales and is not affected by water density, flow rate, vibrations or issues that commonly plague other methods.

Since the SPT2-Volume can perform in-process job changes, it is possible to test bottles from different manufacturing lines, or hand-feed a set of bottles as required, with testing protocols unique to that specific bottle type, without the need to stop and reconfigure the system, maximizing testing efficiency.

This system can be configured as a stand-alone testing station, integrated into a sampling line in conjunction with a plant-wide process management system or combined with Agr’s OmniLab® automated measurement system.

The SPT2-Volume is the latest generation in a long line of automated testing systems supplied by Agr for the glass container manufacturing industry.

Agr International Inc. develops and manufactures a full line of laboratory and on-line testing/quality control devices for containers and similar products. The Agr headquarters and main manufacturing facility is located in Butler, PA, USA.

Please contact David Dineff ddineff@agrintl.com or Karen Marcellus kmarcellus@agrintl.com  for additional information.
