Bullet-resistant insulation glass from sedak

The insulating glass "sedak isosecure" protects without the conventional polycarbonate system, up to the highest bulletproof class BR7 NS splinter-free

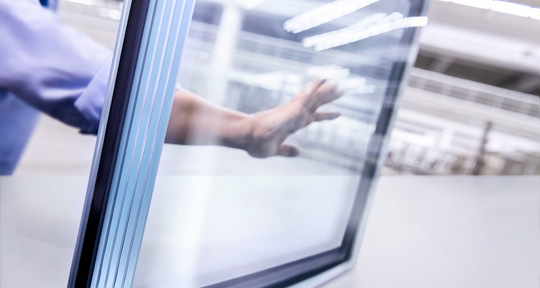

Security, building stability, transparency: the new insulation glass "sedak isosecure" achieves the highest bullet-resistance class BR7 and optimal insulation values combined with high transparency – up to a maximum size of 3.5 x 20 meters. Photo: sedak GmbH & Co. KG

The new “sedak isosecure” combines bullet-resistance with the performance capabilities of modern insulation glass: because the customary polycarbonate system is not needed with the new development, glass with coatings for solar control and heat retention can now be used in the construction of bullet-resistant insulation glass.

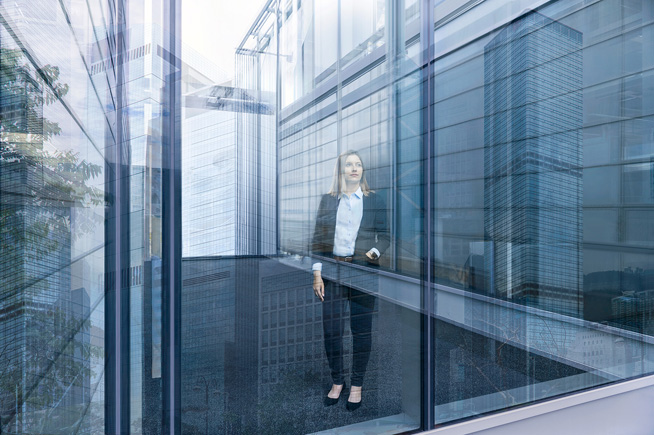

Without a polycarbonate system: “sedak isosecure” reaches the highest bullet-resistance class through its innovative pane construction – and also offers a better fire-protection class because it does not include a plastic film layer. Photo: sedak GmbH & Co. KG

This means that building security and modern energy characteristics are no longer incompatible in insulation glass façades. “sedak isosecure” protects without splintering up to the highest bullet-resistance class BR7 NS according to DIN EN 1063. The maximum size of the bullet-resistant glass is 3.5 x 20 meters.

The clever construction of “sedak isosecure” makes it possible to do without the previously usual polycarbonate system: both of the external panes are made from glass. This preserves the excellent aesthetics of the transparent material and simplifies the handling and cleaning of the insulation glass. Despite this, “sedak isosecure” protects splinter-free against bullets and demonstrates its resistance against handguns (pistols and revolvers) and even against military assault rifles firing hard-core bullets in the highest bullet-resistance class BR7 NS.

A major advantage of the new construction of the glazing is the possibility of using coated glass. The insulation glass therefore fulfils the desired energy standards despite its protective qualities. This makes “sedak isosecure” suitable for glass façades on sophisticated buildings with a high security level. The new insulation glass also sets itself apart in terms of fire safety. As no polycarbonate is used, “sedak isosecure” achieves a better fire protection class.

Because of its leading production technology, sedak is also able to manufacture this special glass in oversized formats of up to 3.5 x 20 meters.
