Guardian Glass is introducing the new Bird1st™ UV glass, a major update to its already diverse bird-friendly glass portfolio. Engineered to support new building requirements while helping to preserve views and reduce the cost of installed IG units, the new solution offers the least visible-to-humans option within Guardian Glass’ bird-friendly portfolio, while meeting the Threat Factor ≤25 required by New York City’s Local Law 15 and other municipalities in the United States.
Innovative, human-centric bird-friendly glass

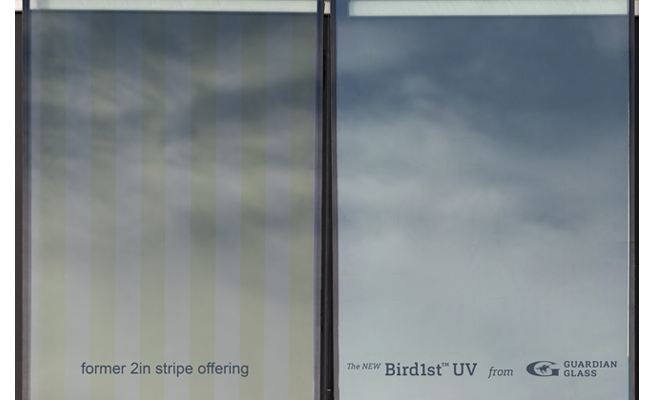

Guardian Glass has developed the new Bird1st UV solution with a strong emphasis on human visual comfort and façade aesthetics. A patterned UV-reflective coating is applied to the exterior surface of the glass, a placement shown through research to be the most effective for bird-friendly materials, where the patented coating can reflect upwards of 75% of UV spectrum light. To further enhance UV visual contrast, Bird1st UV incorporates a laminated interlayer on the second surface that absorbs more than 99% of UV light outside of the patterned areas. Because ultraviolet light falls outside the visible spectrum for the human eye, these features remain discreet to occupants and support clear, open views, allowing architects to design a unified glazing appearance across the façade.
In addition to being extremely difficult to see for humans, the new pattern is non-directional and available in split jumbo (130 x 102 inches), jumbo (130 x 204 inches), and super jumbo (130 x 240 inches) sheet sizes. Both the larger dimensions and non-directional pattern can help optimise cutting yields during fabrication and reduce the overall cost of the final glazing compared to the first-generation Bird1st UV product.
Performance and design versatility
The product has been approved by the American Bird Conservancy (ABC) in combination with a broad range of Guardian SunGuard™ low-E coatings, including SNX 70+, SNX 60+, SNX 62/27, SNX 51/23, SN 68 and Neutral 78/65. Bird1st UV is available on Guardian UltraClear™ low-iron glass and Guardian Clear glass substrates—offering architects and facade designers an extensive range of energy performance, light transmission, and aesthetic options. In addition, the laminated glass can also provide further benefits, including enhanced security performance and improved sound control, contributing to a multipurpose glazing solution.
The new Bird1st UV has also been tested in combination with a variety of European SunGuard coatings. This compatibility can support international project teams working across regions, offering consistent performance options for North American specifications, while also allowing consideration of the solution for projects in other regions, subject to local requirements.
