and sound-absorbing panels. retractable suction cups, able to straighten any planarity unevenness.
SQD331 Quality Control Scanner and Inspection Conveyor, The two sheets that make up the panel (whether single or laminated
providing quality control, especially when working on oversized glass) are held in such a way as to ensure they remain perfectly
dimensions, becomes a fundamental element of insulating glass aligned, so that the gas filling slot is uniform. Once the gas filling
production. As well as identifying any imperfections in the pane, phase has been completed, the two panes are pressed so as to
the SQD331 can also archive the results of its scan: in this way it obtain an airtight closing of the chamber.
is possible to certify the conformity and the quality of the product, The APG can withstand significant vertical offsets, up to 250
even at a later date. millimetres, also when processing double or triple insulating glass.
TT Tilting Table, which performs tilting movement to allow the SRHP High Performance Sealing Robot capable of handling up to
panes to be unloaded. The Tilting Table is of significant dimensions three sealant products and equipped with a semi-automatic dosing
(max glass size 3,300 millimetres in height x 4,000 in width) and, unit change, the sealing robot can operate on panels up to 9
combined with the air cushion generated by an electric fan, allow meters long. This has been made possible thanks to an innovative
easy handling even when processing large sheets. sealing head, which takes into account the probable curvature of
ARC Turning Conveyor: capable of turning sheets up to 6 metres oversized sheets. In fact, the nozzle of the extrusion head can follow
long. any deviations and imperfections of the panel thanks to a dynamic
APG Coupling Flat Press with gas filling, which has been designed detection device , which detects the geometry of the panel and
considering that often oversized dimensions can correspond to consequently controls the extrusion of the sealant through actuators.
significant planarity unevenness (also in terms of centimetres). In The. SRHP therefore offers perfect sealing under any circumstances
order to guarantee optimal processing with panes up to 9 metres and also in the presence of curvatures, surpassing the performance
long, Forel has developed and patented an exclusive system of levels of any previous models.

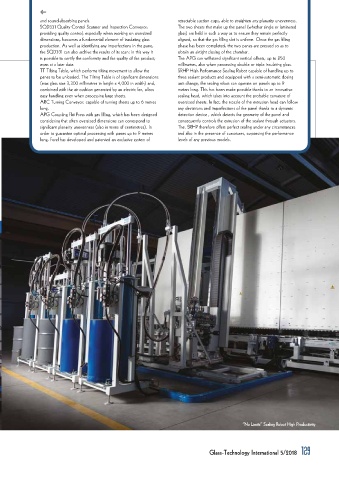

“No Limits” Sealing Robot High Productivity
